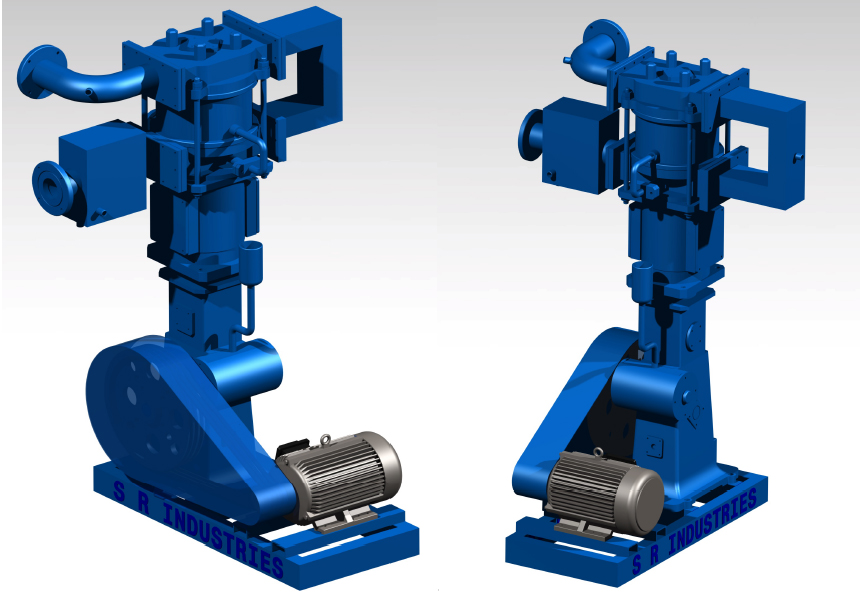

SR DVP - 200 | SR DVP - 300 | SR DVP - 400
Technical Specification
| Model | SR DVP 200 | SR DVP 300 | SR DVP 400 |
| Capacity | 200m3/HR | 300m3/HR | 400m3/HR |
| Motor | 10 HP | 10 HP | 10/15 HP |
| RPM | 1440 RPM | 1440 RPM | 1440 RPM |
| Base/Body | 1150 * 500 mm | 1150 * 500 mm | 1150 * 600 mm |
| Cylinder | ID300 | ID390X | ID480 |
| Valves/b> | NRV | NRV | NRV |
| Filler Bin | 7 Ltrs | 7 Ltrs | 7 Ltrs |
| Air Vales | 6 Nos | 10 Nos | 12 Nos |
| Belt Pully Size | B-82 | B-82 | B-82 |
| Cylinder Cap | 200 m3/HR | 300 m3/HR | 400 m3/HR |
| Water Cooling | 1/2" BSP | 1/2" BSP | 1/2" BSP |
